Co₂DUO³ Concept

Combine the best

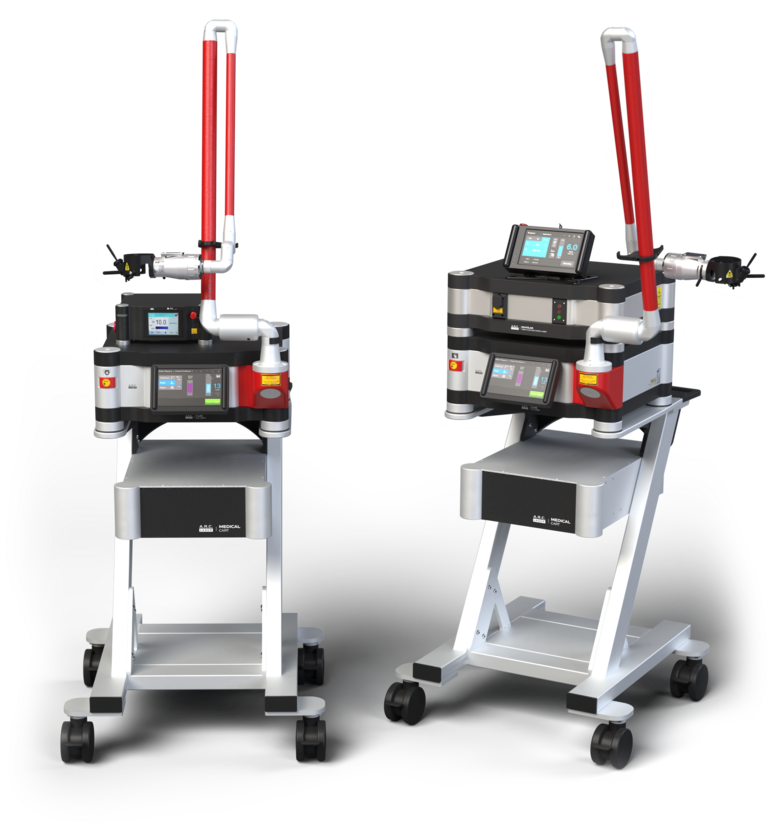

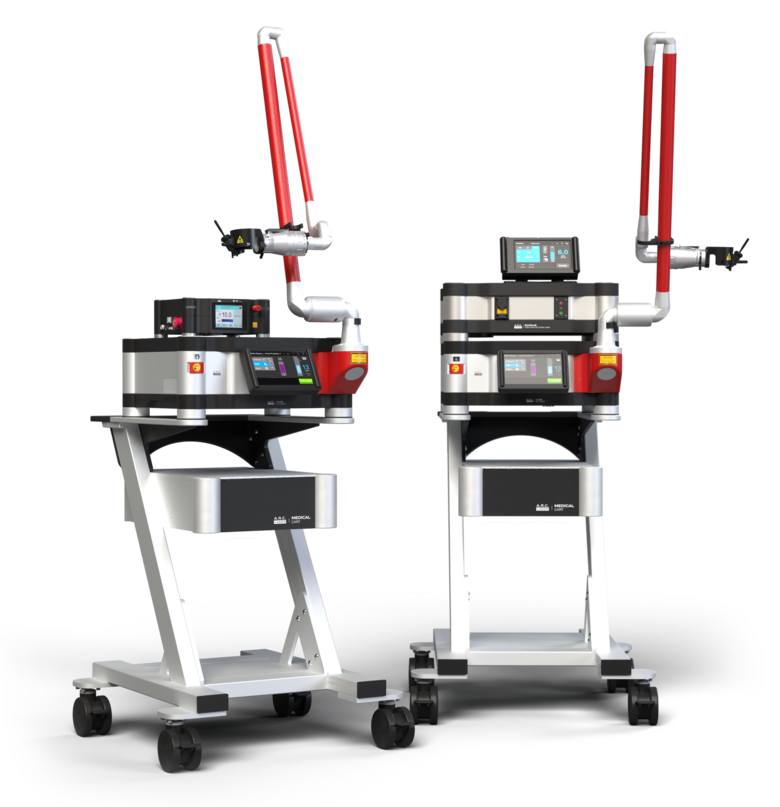

The Co₂DUO³ Concept is our answer to all your concerns. You no longer have to choose between fibre guidance and micromanipulator. With our concept, both are available to you in the form of CORAL Blue and CORAL Green!

What is the Co₂DUO³ Concept

Versatility

The Co₂DUO³ Concept is an enhancement of our CO₂ Laser. Thanks to our tabletop system we are able to add lasersystems with different wavelengths to create a multipurpouse laser tower to address all your wishes.

Choose between our CORAL Blue with the WOLF TruBlue or the CORAL Green with our renowned KTP laser: the Nuvolas.

Be able to switch on the fly between the Co₂ articulated line-of-sight approach for high precision cutting and the fiber guided second laser as a highly flexible approach for specific photocoagulation.

This versatility is further enhanced by the additional wavelength properties complementing each other to cover the whole ENT application field. In addition, each laser is individually operable and can be used at different locations if desired.

Choose your prefered combination between the CORAL Blue and CORAL Green.

DUO³ = 3 for 1

ARM - FIBER - PHOTOANGIOLYTIC

The Co₂DUO³ Concept offers major benefits for your operating room experience:

State-of-the-art Articulated Arm: compatible with any surgical microscope via our achromatic micromanipulator C-Pro for utmost precise cutting
Highly flexible Probes: maximum versatility and maneuverability for e.g. middle ear, laryngeal and DCR treatment
Photoangiolytic Effect: the TruBlue and the Nuvolas allow a gentle, specific coagulation of vessels in addition to the standard cutting properties of a CO₂laser

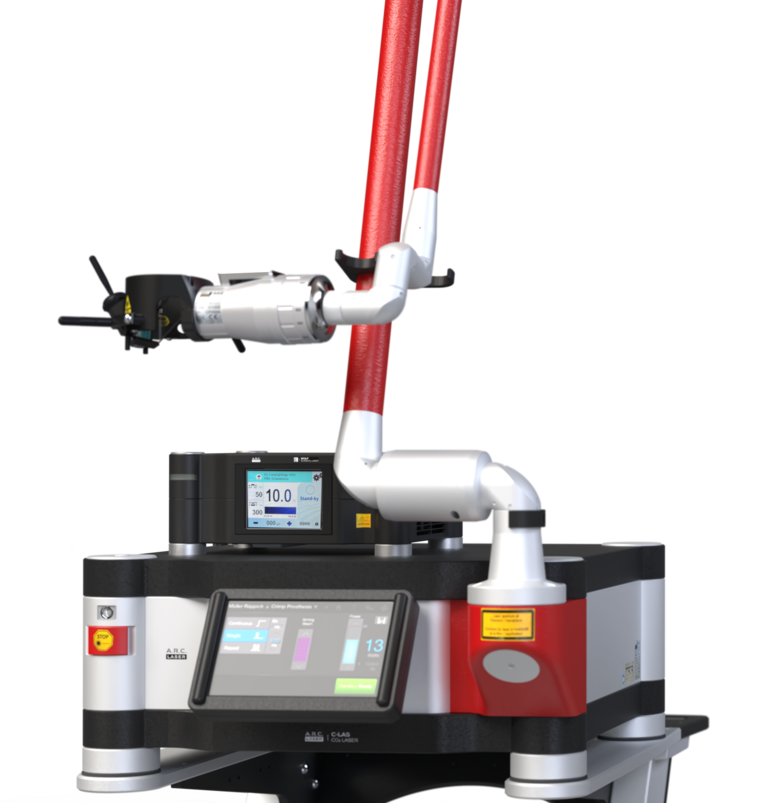

Technical data CORAL Blue

Wavelengths	10.6 µm / 445 nm
Beam guidance	10. 6 µm: Articulated arm with micromanipulator or handpiece 445 nm: Fiber / Probes
Outputpower	10.6 µm: 30 Watt / 10 Watt Super Pulse 445 nm: 10 W
Pulse length	10.6 µm: 20 ms to 500 ms / CW 445 nm: 1 ms to 45 s / CW
Aiming beam	Red 635 nm Green 532 nm, adjustable
Weight	34,8 kg

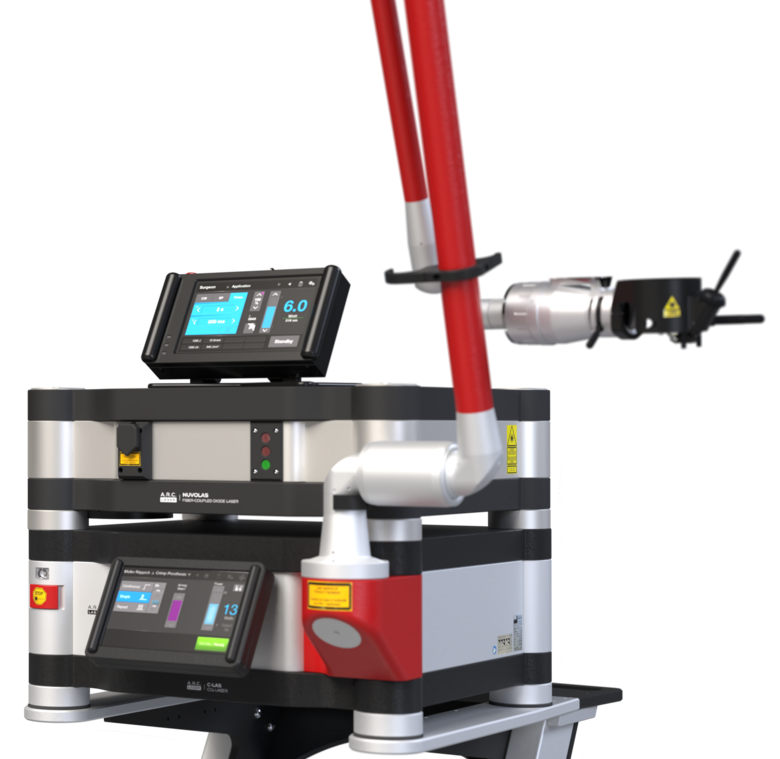

Technical data CORAL Green

Wavelengths	10.6 µm / 514 nm
Beam guidance	10. 6 µm: Articulated arm with micromanipulator or handpiece 514 nm: Fiber / Probes
Outputpower	10.6 µm: 30 Watt / 10 Watt Super Pulse 514 nm: 8 W
Pulse length	10.6 µm: 20 ms to 500 ms / CW 514 nm: 20 ms to 60 s / CW
Aiming beam	Red 635 nm, adjustable
Weight	56 kg
